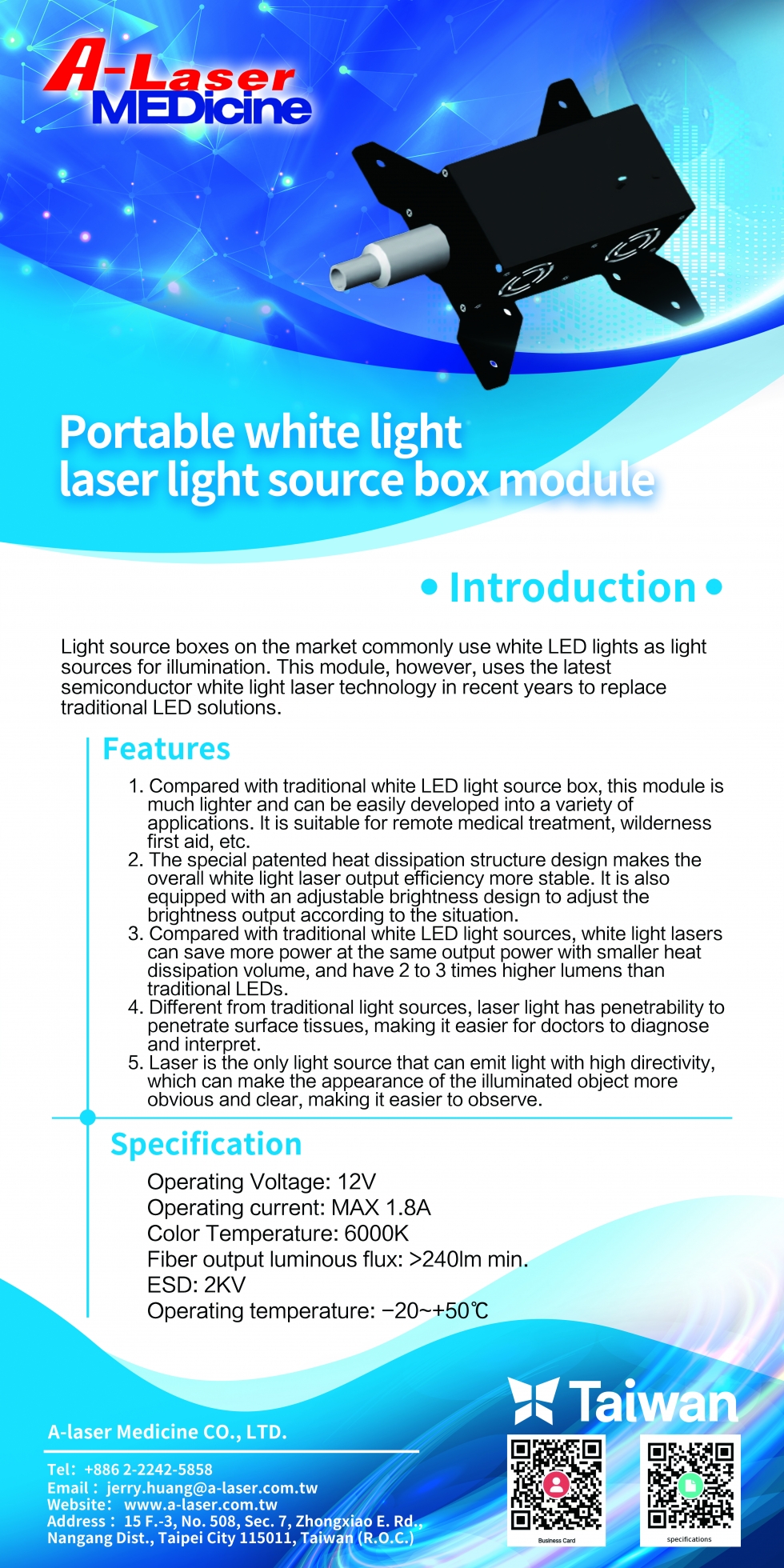

Introduction
Light source boxes on the market commonly use white LED lights as light sources for illumination. This module, however, uses the latest semiconductor white light laser technology in recent years to replace traditional LED solutions.
Features / strengths
1. Compared with traditional white LED light source box, this module is much lighter and can be easily developed into a variety of applications. It is suitable for remote medical treatment, wilderness first aid, etc.
2. The special patented heat dissipation structure design makes the overall white light laser output efficiency more stable. It is also equipped with an adjustable brightness design to adjust the brightness output according to the situation.
3. Compared with traditional white LED light sources, white light lasers can save more power at the same output power with smaller heat dissipation volume, and have 2 to 3 times higher lumens than traditional LEDs.
4. Different from traditional light sources, laser light has penetrability to penetrate surface tissues, making it easier for doctors to diagnose and interpret.
5. Laser is the only light source that can emit light with high directivity, which can make the appearance of the illuminated object more obvious and clear, making it easier to observe.
Specification in detail
Operating current
MAX 1.8A
Fiber output luminous flux
>240lm min.
Operating temperature
-20~+50℃
